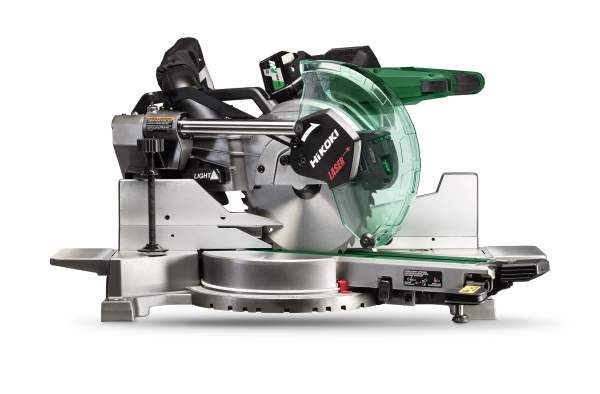

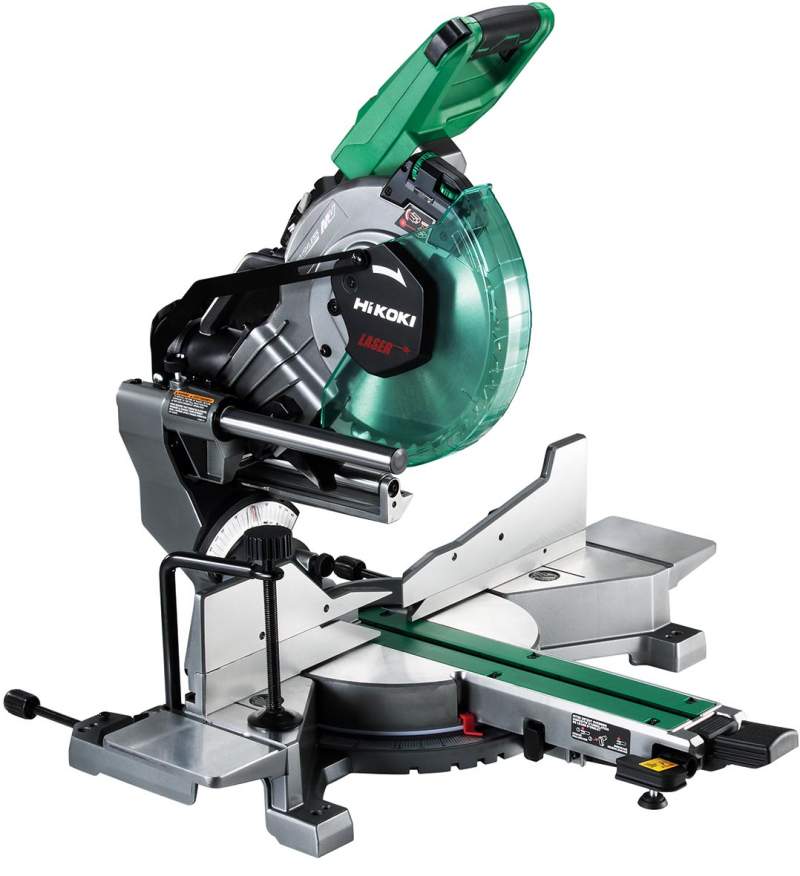

C3610DRA 36V Multi Volt Slide Compound Mitre Saw
Product sheet
Features
High efficiency brushless motor - long lifetime with reduced maintenance
Batteries are compatible with existing Hitachi 18V tools
Laser guide system for high cutting accuracy
Compact slide system allows slide cuts with zero rear clearance
Fast cutting speed
Up to 374 cuts per charge*
Mitre cuts up to 48 degrees left & right
Bevel cuts up to 55 degrees left and 60 degrees right
LED worklight for high visibility and safer working
* in 2 x 4 SPF when using BSL36B18 battery. Varies according to material and operating conditions
Specifications
| Blade size | 255mm |
|---|---|
| No-load Speed | 4000/min |
| Cross cut | 89 x 292mm |
| Mitre cut 45 deg L/R (h x w) | 89 x 204mm |
| Bevel cut 45 deg L (h x w) | 45 x 292mm |
| Bevel cut 45 deg R (h x w) | 25 x 292mm |
| Mitre angle | 0-60 deg R/0-55 deg L |
| Bevel angle | 0-48 deg L/R |
| Dimensions | 778 x 792 x 686mm |
| Weight | 20.6kg |
C3610DRAJAZ
2 x BSL36B18; UC18YSL3
TCT saw blade 255mm NT40 (for wood cutting) (D30 hole with collar)
Dust bag
Vise assembly
Support rod ass’y×2
5 mm screw×2
Carton Box
GTIN 4966376324453
C3610DRAW4Z
Body only
TCT saw blade 255mm NT40 (for wood cutting) (D30 hole with collar)
Dust bag
Vise assembly
Support rod ass’y×2
5 mm screw×2
Carton Box
GTIN 4966376324408
3 year automatic warranty subject to terms & conditions. Eligible for 5 year warranty when registered within 4 weeks of purchase. Please remember to retain your proof of purchase.
