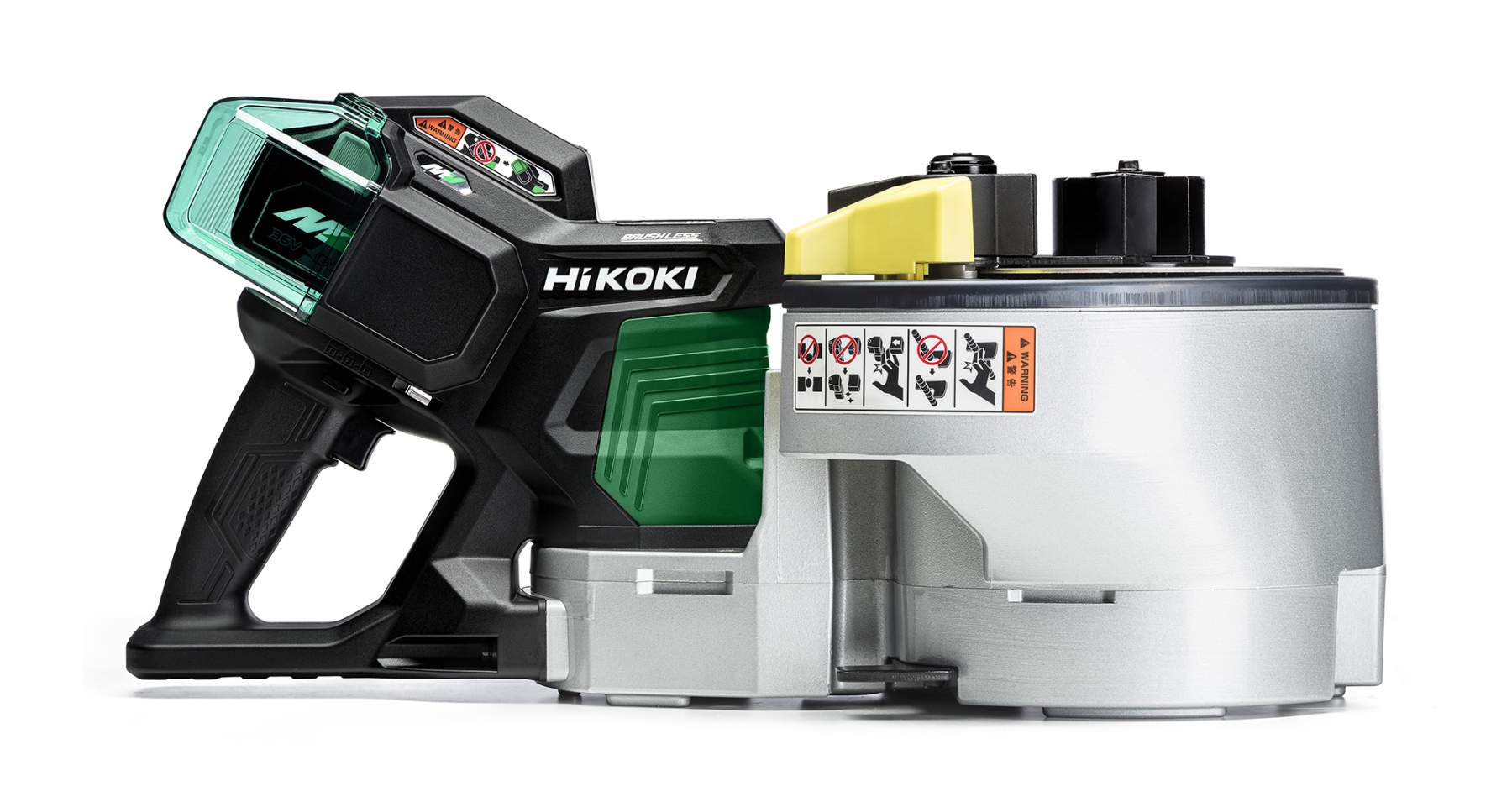

VB3616DA 36 V Brushless rebar cutter and bender
Product sheet
Features
- First tool worldwide that combines cutting and bending for high efficiency
- Fast bending and cutting: cutting of two 10 mm rebar at the same time, bending of three 10 mm rebar and two 13 mm rebar at the same time
- Fast cuts of only 2.6 seconds for 16 mm construction steel for fast work progress
- Fast binding of only 3.8 seconds for 16 mm to 180° for fast work progress
- Long runtime for up to 270 cuts with BSL36B18 (13 mm construction steel) for fewer battery changes
- Long runtime for up to 520 bends to 90° with BSL36B18 (13 mm construction steel) for fewer battery changes
- MULTI VOLT battery technology: AC power, DC freedom
Specifications
| Cutting/Bending Capacity | 10mm/13mm/16mm rebar |
|---|---|
| Cuts per charge | Approx 170 with BSL36B18 (Based on 13mm diameter SD345 rebar) |
| Bends per charge (90º) | Approx 310 with BSL36B18 (Based on 13mm diameter SD345 rebar) |
| Cutting Time | 2.6 secs (Based on 16mm diameter SD390 rebar) |
| Bending Time (180º) | 3.8 secs (Based on 13mm diameter SD345 rebar) |
| Multiple Cut Capacity | 10mm: 2 / 13mm: 1 / 16mm: 1 |
| Multiple Bend Capacity | 10mm: 3 / 13mm: 2 / 16mm: 1 |
| Battery Voltage | 36V |
| Dimensions | 510 x 230 x 241mm |
| Weight | 18.9kg with BSL36A18 |

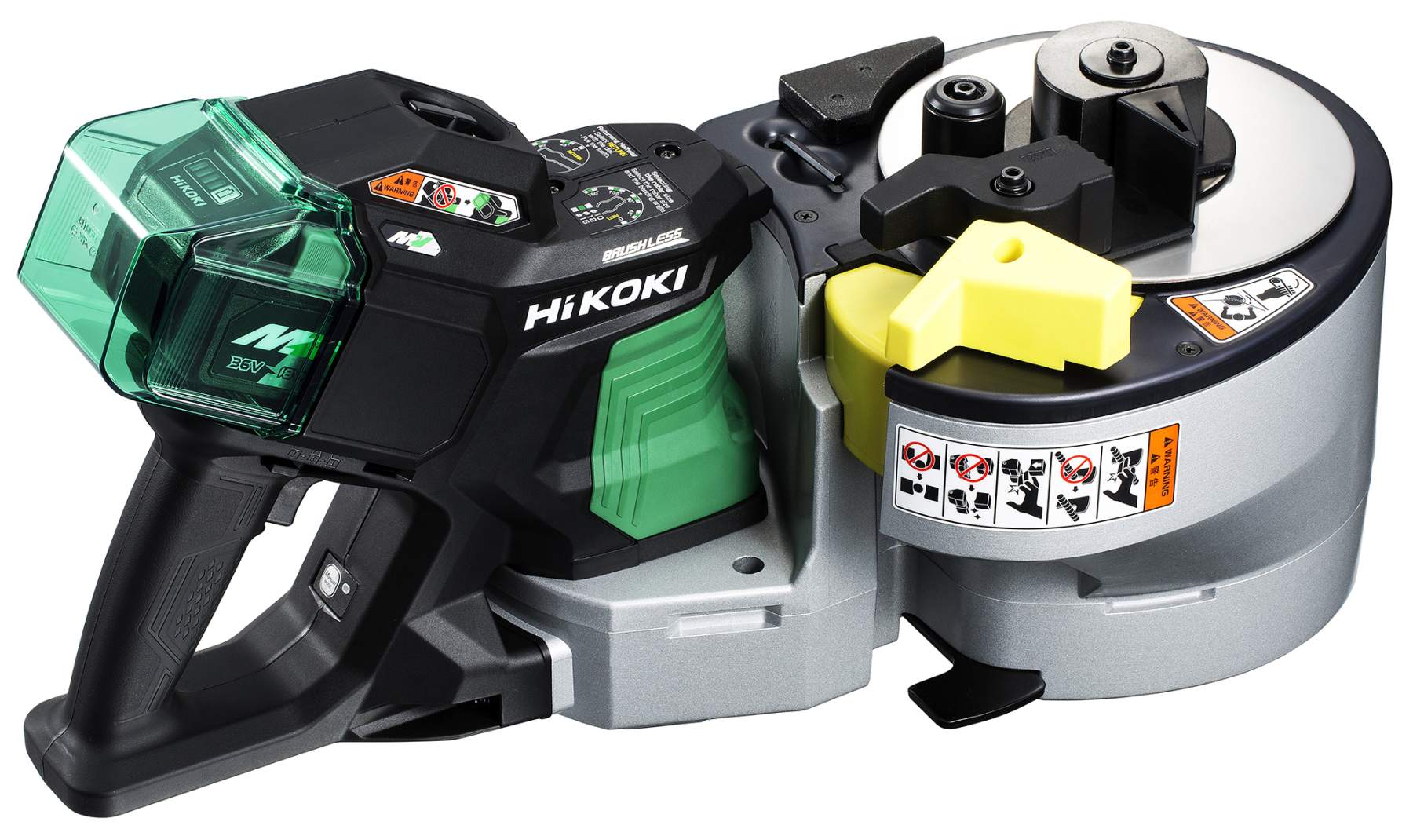

VB3616DAJGZ
2 x BSL36A18; UC18YSL3
Battery cover
Hex. bar wrench 4 mm (length 45)
Cutter set (1 pair)
GTIN 4966376331796
3 year automatic warranty subject to terms & conditions. Eligible for 5 year warranty when registered within 4 weeks of purchase. Please remember to retain your proof of purchase.
