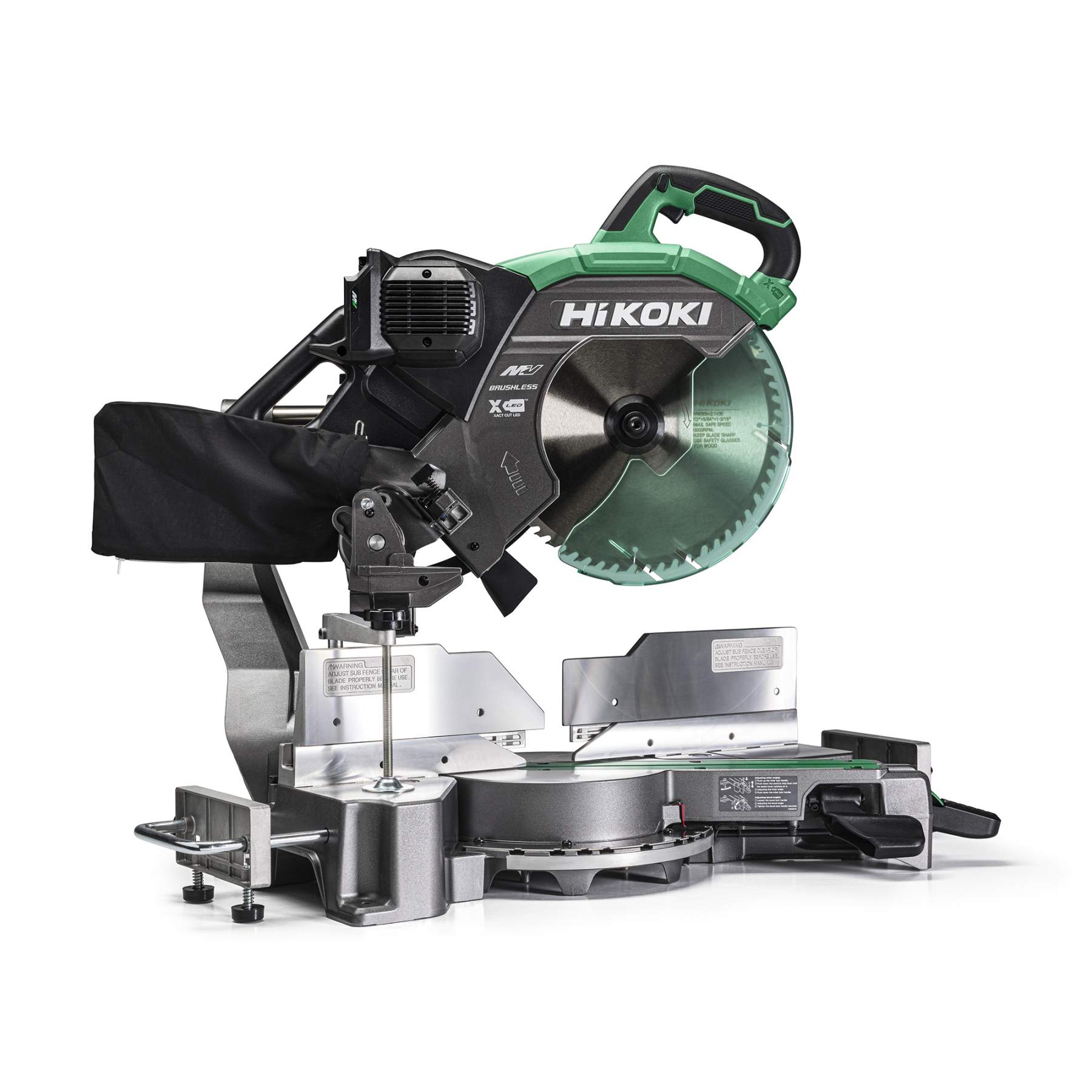

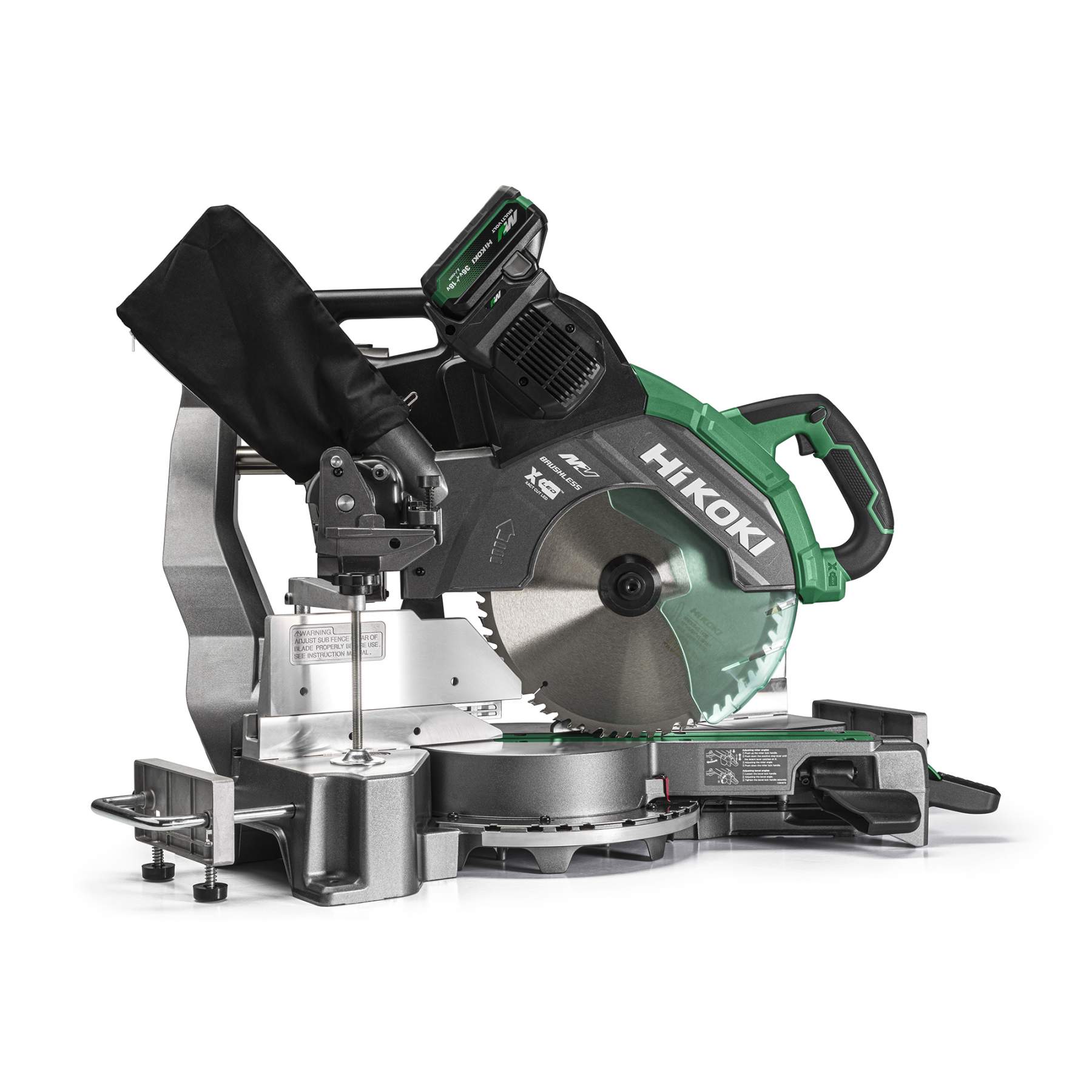

C3612DRA 36V 12" Cordless Compound Mitre Saw

Product data sheet
36V 12
36V 12

Key features

TORQUE BOOST TECHNOLOGY achieves remarkable balance between speed and precision in cutting tasks. This innovation ensures consistent performance, even when handling heavy loads, making it a reliable tool for various applications.

LED Shadow light provides users with the flexibility to achieve precise cuts. This feature allows for easy adjustment of the blade to the cut line, enhancing accuracy and  contributing to the overall efficiency of the cutting process.

One-Touch Mitre Lock for Workflow Efficiency
Streamlining the workflow, this saw offers the convenience of a one-touch mitre lock. This feature allows for quick and efficient adjustments, saving time and effort during tasks that require changes in cutting angles.

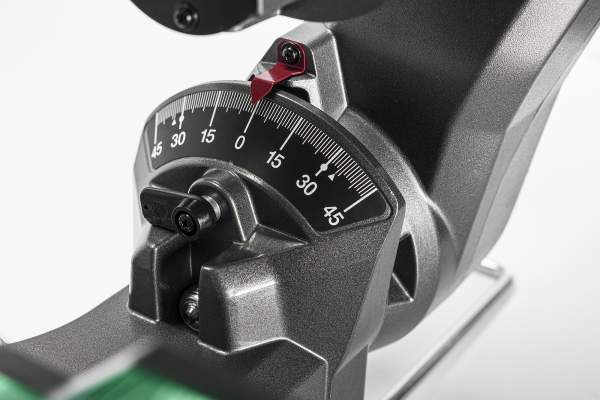

Metal Adjustable Scale for Durability and Accuracy
Benefit from enhanced durability and accuracy with the metal adjustable scale. This component not only adds to the tool’s robustness but also contributes to maintaining precise  measurements, ensuring consistent & reliable results over time.

Front-Accessible Bevel & Mitre Lock
Designed for practicality in narrow jobsites, this saw allows easy access to bevel and mitre locks from the front. This feature enhances maneuverability and accessibility,  making the saw well-suited for confined spaces where  traditional access might be challenging.

Key features

Specifications

Battery Voltage 36V
Motor Brushless (Torque Boost™)
Blade diameter 305mm Ø (12")
Maximum Cutting Capacity 0° : 107 x 312mm 45° (Bevel left): 70 x 312mm 45° (Bevel right): 45 x 312mm Mitre Left 45° + Bevel Left 45°: 70 x 220mm Mitre Left 45° + Bevel Right 45°: 45 x 265mm Mitre Right 45° + Bevel Right 45°: 45 x 220mm Mitre Right 45° + Bevel Left 45°: 70 x 265mm
Capacity Mitre Angle: 0 – 45° (left) 0 – 57° (right) Bevel Angle: 0 – 45° (left) 0 – 45° (right)
No load speed 4,000 (min-1)
Blade bore 30 mm
Max. Torque (Hard/Soft) 140 Nm / 70 Nm
Dimensions (L x H x W) 873 x 916 x 724 mm
Weight 25.2 kg
Battery type HIKOKI MultiVolt battery

C3612DRAW4Z
Body only
Dust bag

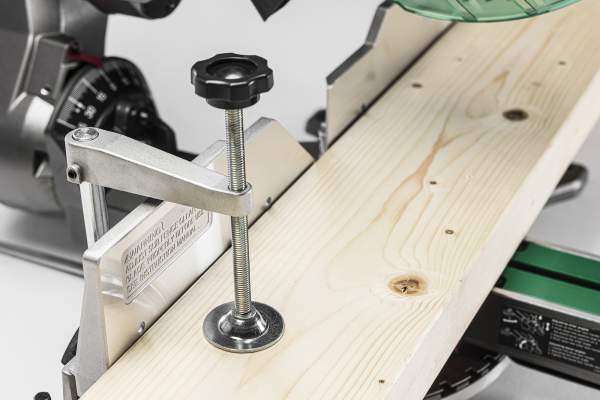

Vice assembly
8mm Hex bar wrench
Holder
TCT Saw blade 305mm Diameter 60Teeth


GTIN 4966376412990

3 year automatic warranty subject to terms & conditions. Eligible for 5 year warranty when registered within 4 weeks of purchase. Please remember to retain your proof of purchase.
