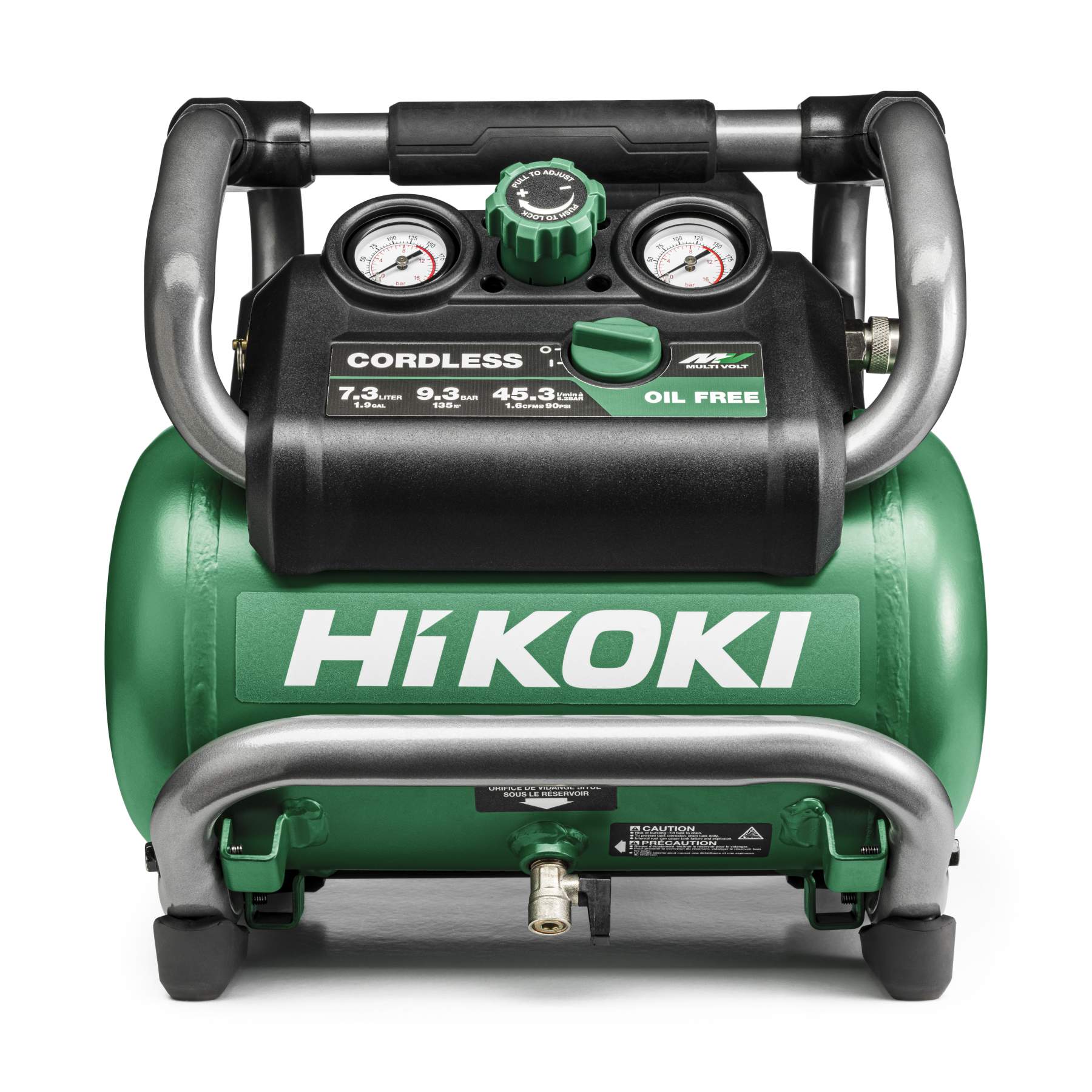

EC36DA 36V Cordless Compressor
Product sheet
Lightweight and compact design for easy portability making it ideal for finish and trim work without the constraints of an extension cord
Oil-free and Brushless Motor technology, along with the removable air filter, ensure easy maintenance and a longer tool lifetime
Powerful motor refills the tank to its max. pressure of 9.3 bar within 17 seconds
Large pressure knob and easy-to-read gauges
All-metal roll cage design for greatest durability
Big tank capacity of 7.3 L to shoot more than a 1,000 brad nails with one battery charge
Specifications
| Voltage | 36V |
|---|---|
| Motor type | Brushless |
| Tank shape | Hotdog |
| Tank capacity | 7.3 L |
| Cut-in pressure | 7.2 bar (105 PSI) |
| Cut-off pressure | 9.3 bar (135 PSI) |
| Air delivery at 2.8 bar | 65.1 L/min. |
| Air delivery at 6.2 bar | 45.3 L/min. |
| Air filling time (1) | 65 sec. |
| Air refilling time (1) | 17 sec. |
| Working capacity per charge (2) | Over 1,000 nails |
| Oil-less lubrication | YES |
| External intake filter | YES |
| Dimensions (L x W x H) | 408 x 330 x 343 mm |
| Weight with BSL36B18 (3) | 14.3 kg |
EC36DAW4Z
Tool only (Cardboard box)
GTIN 4966376414802
(1) When using battery BSL36B18.
(2) When using 18 Gauge Brad Nailer NT50AE2 with battery BSL36B18.
(3) Weight according to EPTA-2004 procedure.
3 year automatic warranty subject to terms & conditions. Eligible for 5 year warranty when registered within 4 weeks of purchase. Please remember to retain your proof of purchase.
